In Ima Tecno we design and manufacture motors that can be applied directly to the RAMs of machine tools, or to drive mechanical milling heads, or for speed changes.
Click a parameter to filter
Immagine
Codice
Diametro Corpo
Potenza S1-S6
Coppia S1-S6
Velocità Massima
Interfaccia Utensile
Categoria
mm
kW
Nm
rpm
tipo
No products with these combinations
Loading Results
Load More
Main Info for Motorizations
The adoption of these motors allows the transmission of the motion with high power and torque in milling heads and speed changes. Having extremely small dimensions, the application allows to simplify the layout of the machine in terms of overall dimensions.
- Power 250 kW
- Torque 5000 Nm
- Speed 15,000 rpm
Types of Motorizations
- Power 250 kW
- Torque 5000 Nm
- Speed 15.000 rpm

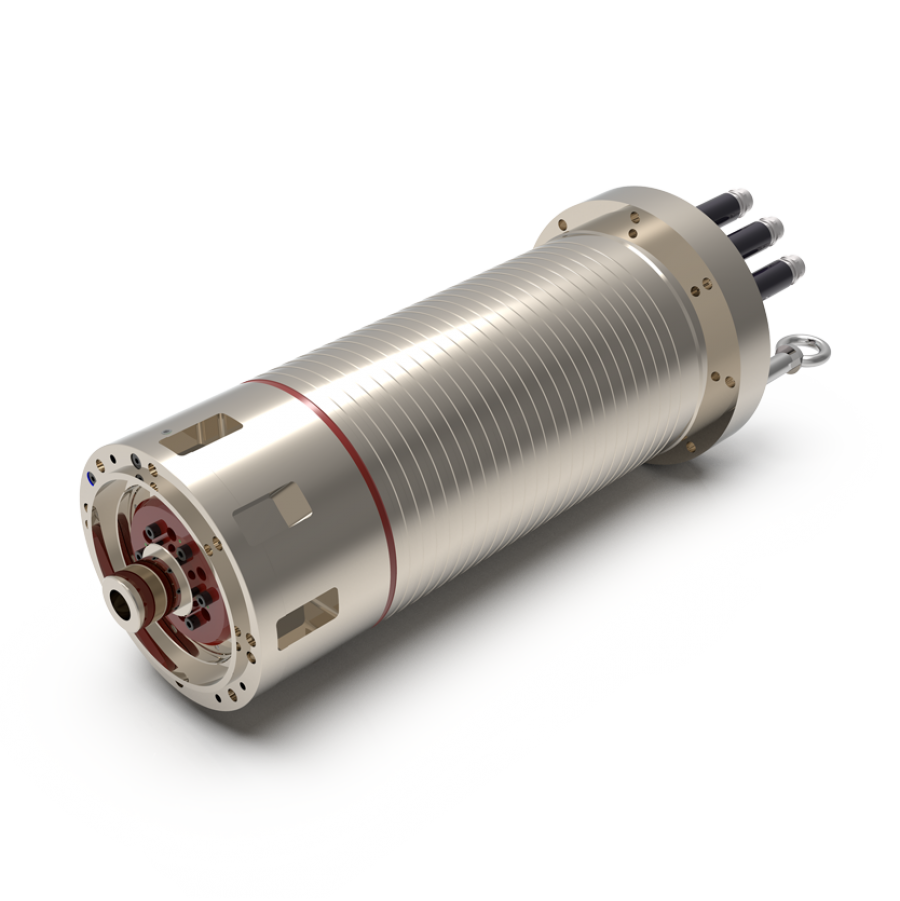

DESCH MOTOR GEARBOX UNIT Denox® HSE
| Description - Data | HSE 40 | HSE 60 | HSE 80 | HSE 100 | ||
| Power | P | kW | 40 | 60 | 80 | 100 |
| Speed | n | rpm | 1500 | 1400 | 1200 | 955 |
| Torque | T1 | Nm | 250 | 400 | 650 | 1000 |
| Ratio | i | 1/5 | 1/5 | 1/5 | 1/5 | |
| Nominal Torque | T2 | Nm | 1250 | 2000 | 3250 | 5000 |
| Max Speed | n | rpm | 7000 | 6000 | 4500 | 4000 |
| Outer Diameter | A | mm | 240 | 260 | 300 | 350 |
| Hollow Shaft Diameter | B | mm | 25 | 30 | 35 | 36 |
| Reducer Length | C | mm | 430 | 490 | 550 | 600 |
| Total Lenght | D | mm | 1150 | 1250 | 1300 | 1400 |
| Mounting Position | Horizontal / Vertical | |||||
| Efficiency | eta | % | 0.97 | |||

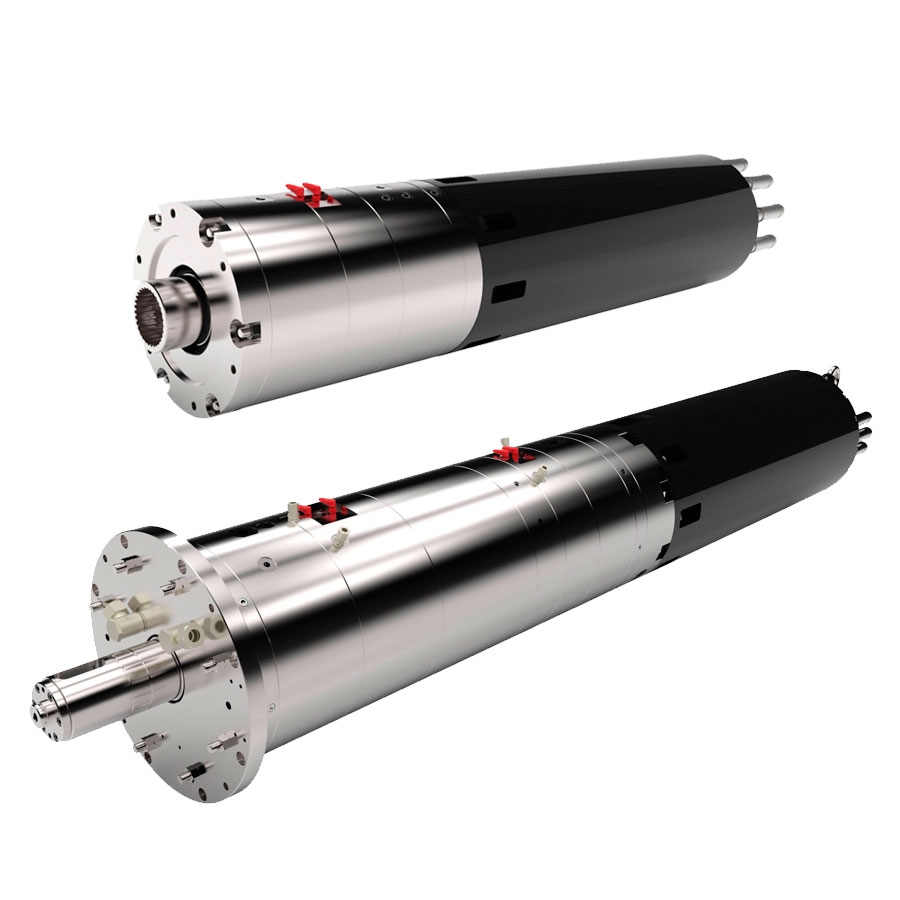

DESCH MOTOR GEARBOX UNIT Denox® HS
| Description - Data | HS 60 | HS 80 | HS 100 | HS 120 | HS 140 | ||
| Power | P | kW | 60 |
80 |
104 | 125 | 140 |
| Speed | n | rpm | 1460 | 1200 | 1700 | 1500 | 1300 |
| Torque | T1 | Nm | 390 | 650 | 585 | 800 | 1000 |
| Ratio | i | 1,00/4,00/14,17 | 1,00/3,5/12,80 | 1,00/4,50/15,88 | 1,00/4,00/14,17 | 1,00/4,00/16,00 | |
| Nominal Torque | T2 | Nm | 5500 | 8300 | 9300 | 11300 | 16000 |
| Max Speed | n | rpm | 6000 | 6000 | 5000 | 4500 | 4000 |
| Outer Diameter | A | mm | 260 | 300 | 350 | 350 | 400 |
| Hollow Shaft Diameter | B | mm | 35 | 45 | 45 | 45 | 45 |
| Reducer Length | C | mm | 1750 | 950 | 970 | 970 | 1000 |
| Total Lenght | D | mm | 1150 | 1800 | 1700 | 1700 | 2000 |
| Mounting Position | Horizontal / Vertical | ||||||
| Efficiency | eta | % | 94 | ||||
