Laser Head Horizontal

Laser Heads
  • Rotation Axes 45
    Working rotation axes
  • Hposition
    Horizontal Position

Main Info for Laser Head Horizontal

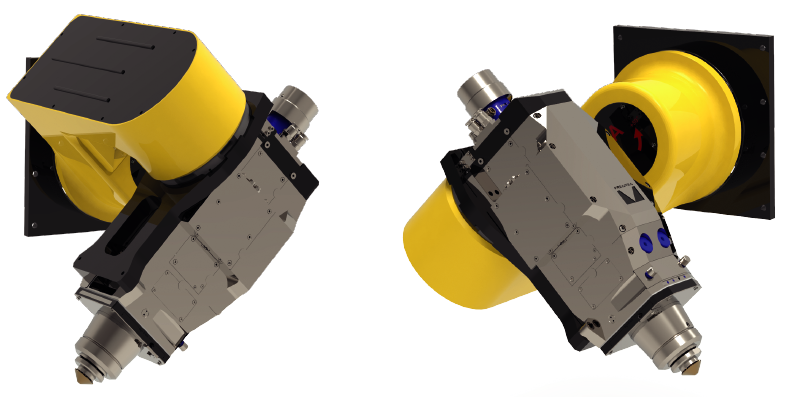

LASER HEAD Horizontal Application

The Ima Tecno bevel heads can be adapted to assemble the laser cutting unit.

Description

Asse A

TESTA

Asse B

TORCIA

Work Position Orizzontale
Bevel Angle

± 50°

± 50°
Motor Encoder Assoluto multigiro
Motors Su richiesta

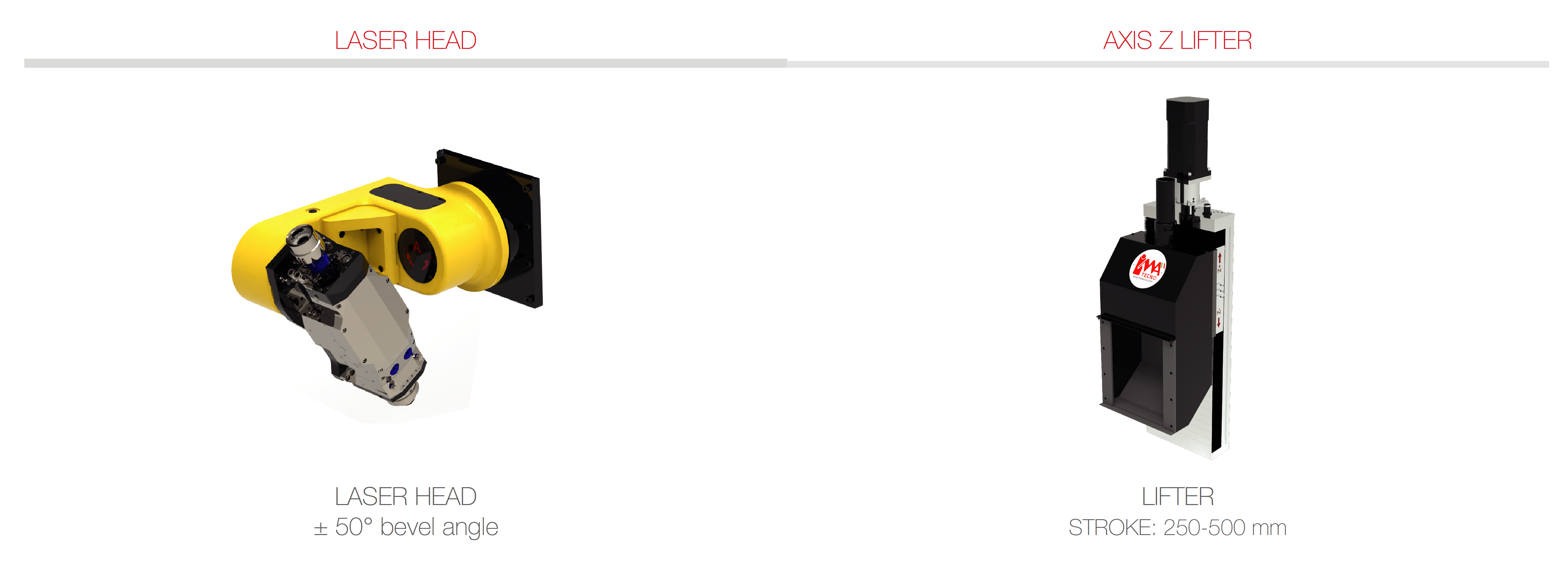

LASER HEAD possible configuration


LASER HEAD motors

The Bevel Head can be made using motors and drives supplied by the Customer which will be assembled by IMA TECNO before delivery.

  • 1DELTA
  • 1HYPERTHERM
  • 1KOLMORGENN
  • 1ECKELMANN
  • 1YASKAWA
  • 1FANUC
  • 1MITSUBISHI
  • 1HIWIN
  • 1SIEMENS
  • 1BOSCH
  • 1PANASONIC
  • 1BECKHOFF
